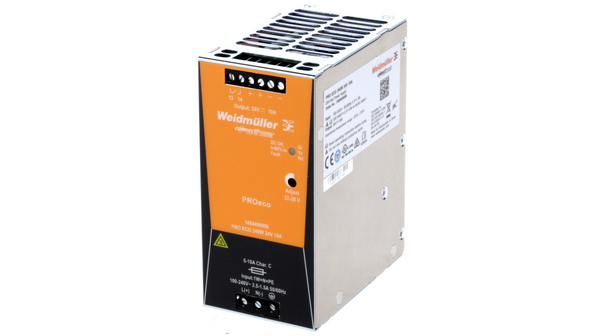

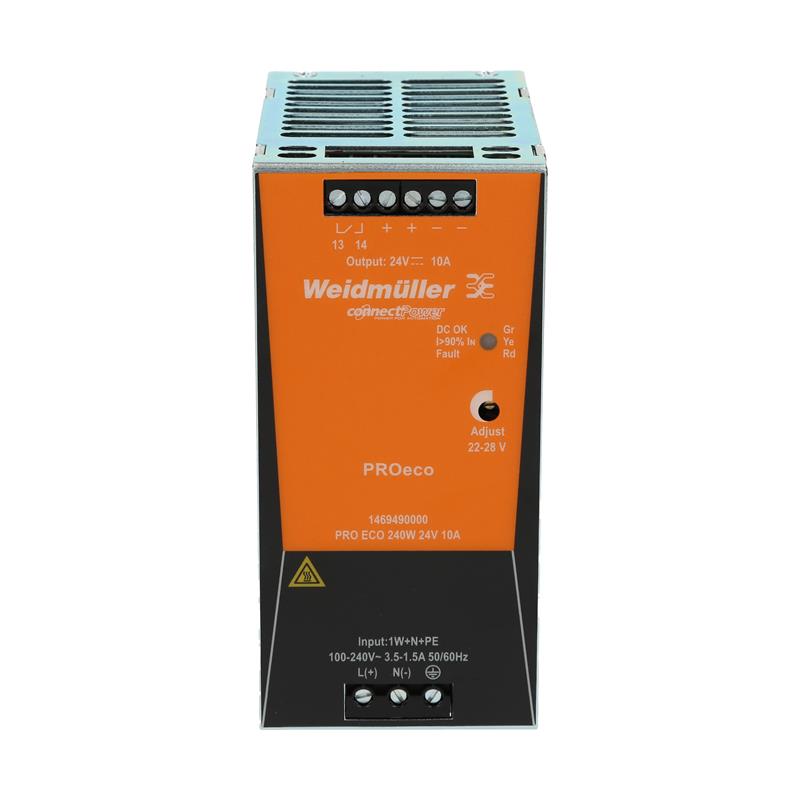

Weidmuller Power Suplply – Pro Eco 240w 24v 10a

Category: Switching Mode Power Supply

Description
Reviews (0)

Product specifications

Outputs	1
Output Voltage 1	24 V
Output Current 1	10 A
Output Voltage Nominal 1	24 V
Output Type	Adjustable
Input Voltage Nominal	100 … 240 VAC
Rated Power	240 W
Input Voltage Min.	85 V
Input Voltage Max.	264 V
Insulation Voltage	3 kV
Ripple & Noise (V)	50 mV
Termination Type	Screw Terminal
Series	PROeco
Efficiency	90 %
MTBF	500000 h
Protection Rating	IP20
Operating Temperature Min.	-25 °C
Operating Temperature Max.	70 °C
Depth	100 mm
Height	125 mm
Width	60 mm
