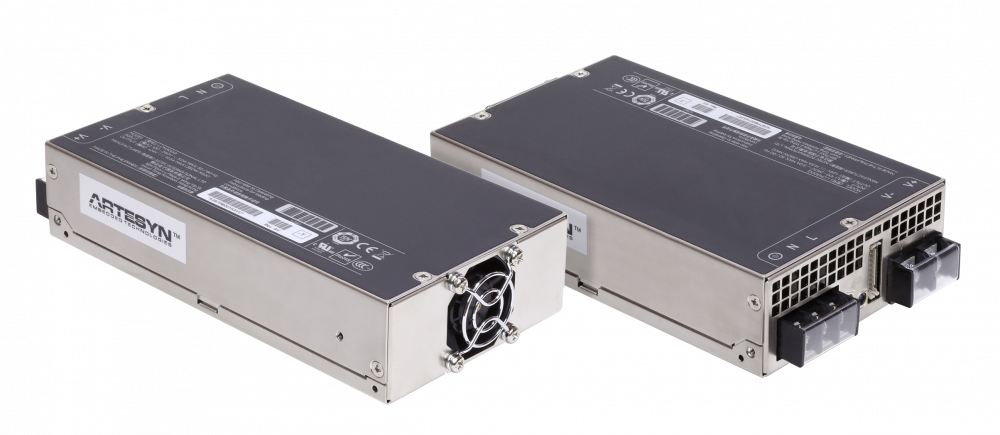

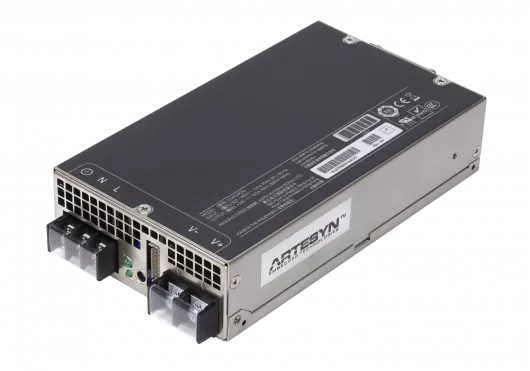

LCM300 Series 310–350 WATT FRONT-END AC-DC POWER SUPPLIES
₨4,500.00
LCM300 Series 310–350 WATT FRONT-END AC-DC POWER SUPPLIES
Availability:
100 in stock
Features
- +/ 20% adjustment range
- 350W peak power
- 40 to +70 Dec C operation (with derating above 50 C)
- High Efficiency 91%
- Option 5V standby
- Input Range 85-264 VAC 127-374 VDC
- Frequency 47-63 Hz
- Inrush Current <= 20 A Peak
- Power Factor 0.98 TYP
- Hold-up Time 20 mSec
- Efficiency >91% TYP
- Leakage <0.3 mA @ 264 VAC
- Set Point +/- 0.5%
- Total Regulation +/-2.0%
- Noise (P-P) 0.01
- Max Units in Parallel 10
- Current Share Forced to within 10%
- Over Current Protection 105% to 120% of rated output
- Over Voltage Protection 125% to 145% of rated output
- Fan Noise <45dBA, 80% load 40C Fan Off with Inhibit
Benefits
- Conformal Coat Option
- DSP Controlled
- EMI Level B
- Industrial/Medical Safety
- Integrated ORing FET
- Low Cost
- Margin Programming
- Optional Conformal Coat
- Optional Constant Current
- PMBus Compliant
- Variable Speed “Smart Fan”
Specifications
| Output Power (W): |
300 |
| Length (Inches): |
7 |
| Width (Inches): |
4 |
| Height (Inches): |
1.61 |
| Mounting Type: |
Embedded PSU |
| Minimum Output Current (A): |
0 |
| Maximum Output Current (A): |
25 |
| Output Voltage Range (V): |
9.6V to 57.6V |
